How Lamp and Dimmer Compatibility Can Make or Break Decorative Lighting
Author:Admin Publish time: September 1, 2026 Origin: Site
A dimmable G9 LED is only as good as the dimmer it works with.
A decorative chandelier can use beautiful glass, premium finishes, high-CRI LEDs and carefully selected color temperatures — yet still feel disappointing when someone turns the dimmer down.
At full brightness, everything looks perfect.
At 20%, the lamps begin to flicker.
At 10%, they suddenly switch off.
Or the dimming curve feels uneven and the warm, intimate atmosphere the designer intended simply never appears.
The immediate conclusion is often:
“There must be something wrong with the LED lamp.”
Sometimes there is.
But very often, the lamp itself is not defective. The problem is the compatibility between the LED lamp and the dimmer.
For decorative lighting using G4, G9 and other miniature LED lamps, this relationship deserves much more attention than the simple word “dimmable” on a specification sheet.
“Dimmable” Does Not Mean “Compatible With Every Dimmer”
This is the first distinction lighting brands should understand.
A dimmable G9 LED contains internal electronic circuitry designed to respond to a dimming waveform.
But different dimmers generate different electrical conditions, and different LED lamp designs respond differently.
So the actual system is much simpler than it is sometimes presented:
DIMMER + LED LAMP (LOAD) → ACTUAL DIMMING PERFORMANCE
The LED lamp itself is the electrical load, and its driver electronics are already inside the lamp.
They should not be treated as separate components in the system.
What also matters is the number of lamps connected, because that determines the total connected load seen by the dimmer.
A more complete way to think about it is therefore:
Exact Dimmer + Exact LED Lamp + Connected Lamp Quantity → Actual Dimming Performance
This is why two G9 lamps with similar wattage, size and lumen output can behave very differently on the same dimmer.
The difference may be invisible from the outside.
It is often inside the lamp.
Why LED Dimming Is More Complicated Than Halogen
Traditional halogen lamps are relatively simple resistive loads.
Reduce the supplied power and the filament becomes dimmer.
LED lamps work differently.
Inside a miniature G9 is an electronic driver that has to respond correctly to the waveform produced by the dimmer while maintaining stable power to the LEDs.
That creates an interaction between:
the dimmer's electrical characteristics
and
the lamp's internal electronics.
This is why replacing a halogen lamp with an LED is not simply a matter of matching:
Base + Voltage + Wattage + Lumens
Dimming behaviour must also be considered.
A dimmer that worked beautifully with a 200W halogen chandelier may behave very differently after the same fixture is converted to 30W or 40W of LED.
TRIAC, Leading-Edge and Trailing-Edge: The Label Is Only the Starting Point
Phase-cut dimming is widely used in decorative lighting.
Leading-Edge / TRIAC
Leading-edge dimmers were traditionally common with incandescent and halogen loads.
Many dimmable G9 LEDs are designed for TRIAC dimming, but saying:
“TRIAC dimmable”
does not guarantee identical performance with every TRIAC dimmer.
Trailing-Edge / ELV
Trailing-edge dimmers are commonly used with electronic lighting loads and can provide excellent LED dimming when the lamp and dimmer are properly matched.
But the same principle applies.
Two trailing-edge dimmers can behave differently with the same LED lamp.
Therefore:
Dimmer type tells you what may be compatible. Testing tells you what actually is compatible.
For an important decorative lighting project, the exact dimmer brand and model are much more useful information than simply “TRIAC” or “ELV.”

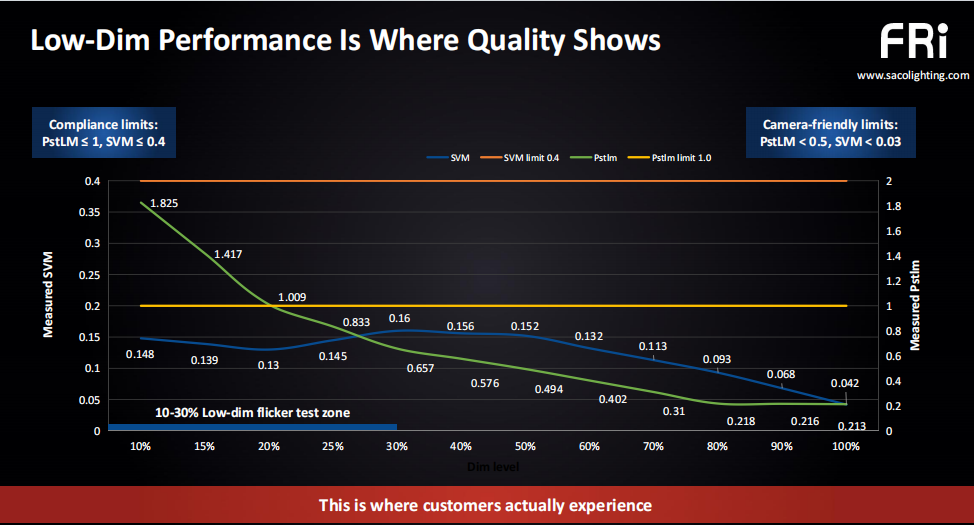

Why the Lowest Dimming Levels Matter Most
A compatibility problem does not always appear immediately.
.png)
At:
100% brightness
the lamp may look excellent.
At:
50%
it may still look excellent.
Move into:
30% → 20% → 10%
and the differences between lamp and dimmer combinations often become much easier to see.
Typical problems include:
Flicker
Visible or measurable instability in light output.
Drop-Out
The lamp suddenly switches off before reaching the intended minimum dimming level.
Pop-On
When switching back on, the dimmer needs to be raised significantly before the lamp illuminates.
Ghosting
The lamp continues to glow faintly after the dimmer has been switched off.
Unstable Low-End Dimming
The last part of the dimming curve becomes difficult to control smoothly.
For general lighting, these issues may be annoying.
For a luxury restaurant, hotel or residential chandelier, they can completely change the experience.
The lowest dimming levels are often exactly where designers create the most intimate atmosphere.
A lamp that works at 100% is not necessarily a lamp that dims well.
One Lamp Can Actually Be a Very Useful Compatibility Test
This is an important point that is sometimes overlooked.
For miniature G4 and G9 LEDs, testing one lamp can provide valuable information about lamp–dimmer compatibility.
Why?
Because a single low-wattage LED represents a relatively low connected load for the dimmer.
For example:
1 × 4W G9 = 4W connected load
If that single lamp can already achieve:
smooth dimming
stable low-end operation
reliable start-up
no premature drop-out
and good flicker performance
with a particular dimmer, that is a strong indication that the lamp and dimmer are fundamentally well matched.
Now increase the number of identical lamps:
1 × G9 → 5 × G9 → 10 × G9
The total connected load increases.
With many phase-cut dimmers, that higher load will often maintain — and in some cases improve — system stability.
If one lamp dims well, multiple identical lamps will often dim well too.
This makes single-lamp testing a useful first compatibility screening condition for low-wattage miniature LEDs.
But Single-Lamp Testing Is Not an Absolute Guarantee
There is an important qualification.
A successful single-lamp test should not be interpreted as:
“Any number of lamps will definitely work.”
The final result still depends on the operating range and characteristics of the dimmer.
For example, a large chandelier may contain:
20 × 4W G9 = 80W
A project like this should still be checked against the dimmer's specified operating range and, where appropriate, verified at the representative fixture load.
This gives us a more practical testing philosophy:
First:
Test one lamp with the exact dimmer.
Does the fundamental lamp–dimmer combination work well under low-load conditions?
Then:
Verify the representative fixture load when necessary.
Does the actual multi-lamp installation remain within the good operating window?
The distinction is important:
Single-lamp testing tells us whether the lamp and dimmer fundamentally work well together. Multi-lamp testing confirms that the actual fixture stays within that good operating window.
That is more useful than assuming every lamp quantity must behave completely differently.
The Number of Lamps Still Matters
Although good single-lamp performance is a strong starting point, the connected quantity should still be known.
Why?
Because from the dimmer's perspective:
1 × 4W G9 = 4W
and
10 × 4W G9 = 40W
are different connected loads.
The quantity becomes especially relevant when:
- the fixture contains many lamps
- the dimmer has minimum or maximum load requirements
- the project uses an unusual control system
- the installation is commercially important
- extremely low dimming levels are required
So the objective is not to test every possible quantity unnecessarily.
It is to understand the actual application and test intelligently.
Dim-to-Warm Makes Compatibility Even More Important
With a standard dimmable LED, the primary objective is to reduce light output smoothly.
With a Dim-to-Warm G4 or G9 LED, another variable is introduced:
color temperature.
A typical Dim-to-Warm lamp may move from:
100% → 2700K
↓
50% → approximately 2200–2400K
↓
10% → approximately 1800K
Now the lamp has to manage:
Brightness + Color Transition + Low-Dim Stability
at the same time.
A lamp that reaches 1800K but flickers at 10% does not create a premium atmosphere.
Likewise, a lamp with excellent low-dim stability but an unnatural color transition may still disappoint the lighting designer.
For premium hospitality and residential applications, Dim-to-Warm should therefore be evaluated as a complete visual experience rather than simply a CCT range on a datasheet.
How Should G4/G9 Lamp–Dimmer Compatibility Actually Be Verified?
For lighting brands, the testing process does not need to be complicated.
But it should be meaningful.
1. Identify the Exact Dimmer
Provide:
Brand + Model Number + Dimming Method
“TRIAC dimmer” alone is not enough information for an important project.
2. Test the Exact G4 or G9 Lamp
Use the final or production-intent lamp.
Because the internal driver is part of the lamp, changes to the electrical design can change dimming behaviour.
3. Start With Single-Lamp Testing
For a low-wattage miniature LED, one lamp provides a useful low-load compatibility condition.
Evaluate:
Start-up
Smoothness
Low-end stability
Drop-out
Flicker
If one lamp already performs poorly, increasing the lamp quantity should not be used as a substitute for solving the fundamental compatibility issue.
4. Pay Special Attention to 10–30%
Do not evaluate compatibility only at full brightness.
For decorative lighting, spend more time where customers actually use the product:
10% → 20% → 30%
This is often where the difference between an acceptable lamp and a premium dimming experience becomes visible.
5. Verify Representative Multi-Lamp Loads When Necessary
If the fixture uses a large number of lamps, verify the actual or representative connected load.
The goal is not endless testing.
It is confirming that the real installation remains within the stable operating range.
6. Measure Flicker — Don't Only Look at It
Visual evaluation is important, but it should not be the only evidence.
Measurements such as:
PstLM
and
SVM
provide additional information about temporal light modulation.
This is particularly valuable when evaluating low-dim performance.
7. Record the Compatibility Result
Over time, compatibility testing should become a reusable engineering database.
A useful record may include:
| Item | Information |
|---|---|
| Lamp | Exact G4/G9 model |
| Dimmer | Brand + model |
| Dimming Method | Leading-edge / trailing-edge |
| Voltage | Actual test voltage |
| Quantity | Number of lamps |
| Minimum Stable Level | Lowest usable dimming point |
| Flicker | SVM / PstLM where applicable |
| Result | Compatible / limitations |
This turns:
“It should work.”
into:
“We tested this combination.”
For a lighting brand, that is a much more useful answer.
What Should You Ask Your G9 Supplier?
Instead of asking only:
“Is this G9 dimmable?”
ask:
“Has this exact G9 been tested with my dimmer?”
And for an important multi-lamp fixture:
“Has it also been verified at the load used in my fixture?”
These questions immediately move the discussion from a marketing specification to actual engineering performance.
A supplier that understands dimming should be able to discuss more than:
Yes / No / Dimmable
They should understand:
exact dimmer
internal lamp design
connected load
low-dim behaviour
and measured flicker performance.
How FRI Approaches G4/G9 Dimming Compatibility
For miniature LED projects, FRI treats dimming compatibility as a lamp–dimmer system issue, not simply a checkbox on a specification sheet.
Depending on the project, evaluation can include:
exact dimmer compatibility
single-lamp low-load testing
representative multi-lamp verification
low-end dimming behaviour
flicker measurement
and Dim-to-Warm performance.
One particularly important area is the lower end of the dimming curve.
Rather than evaluating only whether the lamp switches on and dims, low-dim testing can be used to understand what happens at the levels where decorative lighting is actually experienced.
This is where real test data becomes much more meaningful than the statement:
“Compatible with most dimmers.”
