Beyond ERP Compliance: True Flicker-Free G4 & G9 LED Lighting
Author:Admin Publish time: March 6, 2026 Origin: Site
.png)
In premium lighting, flicker stability is becoming as important as CRI and color consistency.
Most LED lamps today only meet the minimum ERP flicker requirements, but high-end lighting brands increasingly require much lower flicker levels to ensure visual comfort.
This is particularly challenging for miniature LED light sources such as G4 LED and G9 LED, where limited internal space makes driver design far more complex.
ERP Flicker Limits vs Premium Lighting Targets
Under EU Ecodesign regulations, LED lamps must meet the following limits.
|
Parameter |
ERP Requirement |
What It Measures |
|
PstLM |
≤ 1 |
Visible flicker in static scenes |
|
SVM |
≤ 0.4 |
Motion-related stroboscopic effect |
These limits ensure basic compliance, but they are not considered flicker-free.

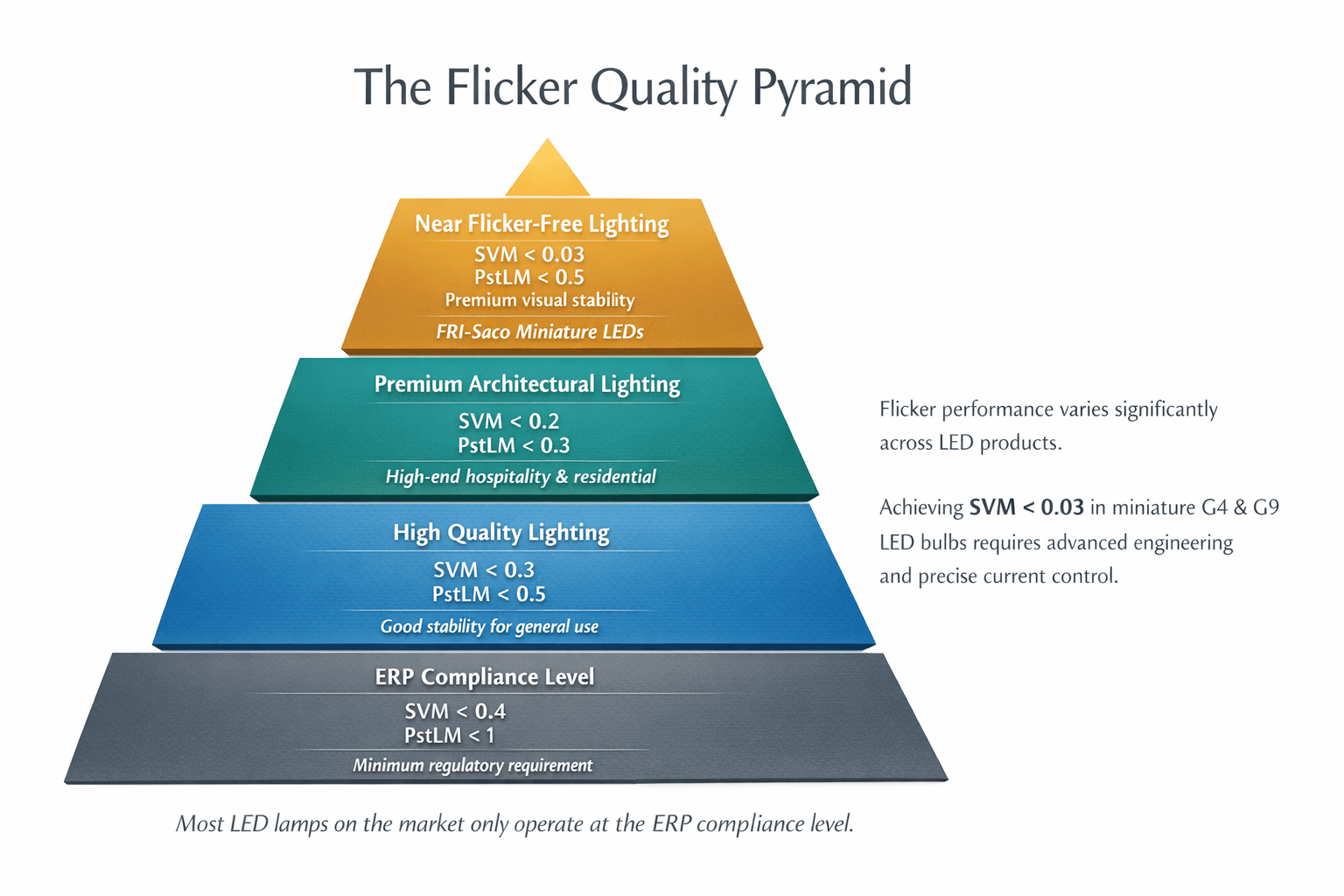

Premium lighting brands typically aim for significantly lower values.
|
Lighting Level |
PstLM |
SVM |
|
ERP minimum |
≤1 |
≤0.4 |
|
Good lighting |
<0.5 |
<0.3 |
|
Premium lighting |
<0.3 |
<0.2 |
|
Near flicker-free |
<0.5 |
<0.03 |
Our miniature G4 G9 LED development targets:
SVM < 0.03
PstLM < 0.5
.png)
Why Low Flicker Is Harder in G4 & G9 Miniature LEDs
Compared with standard LED lamps, G4 and G9 LEDs face unique engineering challenges.
|
Challenge |
Reason |
|
Limited space |
Very small driver and capacitor capacity |
|
AC12V systems |
Irregular waveform from electronic transformers |
|
Dimming compatibility |
TRIAC / ELV dimming distorts voltage waveform |
|
Current sensitivity |
Small power variation causes visible modulation |
These constraints make low flicker G4 LED and G9 LED design significantly more difficult than larger lamps such as GU10 or A19.
Typical Flicker Performance in the Market
Many miniature LEDs currently operate close to ERP limits.
|
Product Type |
PstLM |
SVM |
|
Basic miniature LEDs |
0.7–0.9 |
0.2–0.35 |
|
ERP compliant lamps |
≤1 |
≤0.4 |
|
High-end miniature LEDs |
<0.5 |
<0.1 |
|
FRI-Saco miniature LEDs |
<0.5 |
<0.03 |
Lower flicker levels help ensure stable lighting even in sensitive environments such as retail displays, hospitality interiors, and residential lighting.
Why Lighting Brands Care About Flicker
Low flicker LED lighting improves visual comfort and perceived quality.
|
Application |
Flicker Impact |
|
Retail lighting |
movement appears more natural |
|
Hospitality lighting |
reduced visual fatigue |
|
Residential lighting |
more comfortable ambient light |
|
Photography & video |
reduced camera banding |
For these reasons, many lighting brands now specify low flicker LED light sources as part of their product requirements.
Miniature LEDs Without Compromise
Designing low flicker G4 LED and G9 LED lamps requires careful driver optimization, waveform control, and dimming stability.
At FRI-Saco Lighting, we focus specifically on miniature LED light sources for premium luminaires, delivering stable light performance even in compact formats.
Because in high-quality lighting design, small light sources should never mean compromised light quality.
